The Mathematical Principles of Natural Philosophy

by Isaac Newton

*Of the finding of elliptic, parabolic, and hyperbolic orbits, from the focus given.*

*If from the two foci* S, H*, of any ellipsis or
hyberbola, we draw to any third point* V *the right lines*
SV, HV, *whereof one* HV *is equal to the principal axis
of the figure, that is, to the axis in which the foci are
situated, the other,* SV*, is bisected in* T *by
the perpendicular* TR *let fall upon it; that
perpendicular* TR *will somewhere touch the conic section:
and,* vice versa*, if it does touch it,* HV *will
be equal to the principal axis of the figure.*

For, let the perpendicular TR cut the right line HV, produced, if need be, in R; and join SR. Because TS, TV are equal, therefore the right lines SR, VR, as well as the angles TRS, TRV, will be also equal. Whence the point R will be in the conic section, and the perpendicular TR, will touch the same; and the contrary. Q.E.D.

*
From a focus and the principal axes given, to describe elliptic
and hyperbolic trajectories, which shall pass through given
points, and touch right lines given by position.
*

Let S be the common focus of the figures; AB the length of the
principal axis of any trajectory; P a point through which the
trajectory should pass; and TR a right line which it should touch.
About the centre P, with the interval AB − SP, if the orbit is an
ellipsis, or AB + SP, if the orbit is an hyperbola, describe the
circle HG. On the tangent TR let fall the perpendicular ST, and
produce the same to V, so that TV may be equal to ST; and about V as a
centre with the interval AB describe the circle FH. In this manner,
whether two points P, *p*, are given, or two tangents TR, *tr*,
or a point P and a tangent TR, we are to describe two circles. Let H
be their common intersection, and from the foci S, H, with the given
axis describe the trajectory: I say, the thing is done. For (be cause
PH + SP in the ellipsis, and PH − SP in the hyperbola, is equal to the
axis) the described trajectory will pass through the point P, and (by
the preceding Lemma) will touch the right line TR. And by the same
argument it will either pass through the two points P, *p*, or
touch the two right lines TR, *tr*. Q.E.F.

*
About a given focus, to describe a parabolic trajectory, which
shall pass through given points, and touch right lines given by position.
*

Let S be the focus, P a point, and TR a tangent of the trajectory to
be described. About P as a centre, with the interval PS, describe the
circle FG. From the focus let fall ST perpendicular on the tangent,
and produce the same to V, so as TV may be equal to ST. After the same
manner another circle *fg* is to be described, if another
point *p* is given; or another point *v* is to be
found, if another tangent *tr* is given; then draw the right
line IF, which shall touch the two circles FG, *fg*, if two
points P, *p* are given; or pass through the two points V, *v*,
if two tangents TR, *tr*, are given: or touch the circle FG,
and pass through the point V, if the point P and the tangent TR are
given. On FI let fall the perpendicular SI, and bisect the same in K;
and with the axis SK and principal vertex K describe a parabola: I say
the thing is done. For this parabola (because SK is equal to IK, and
SP to FP) will pass through the point P; and (by
Cor. 3, Lem. XIV) because ST is equal to TV, and STR a right angle, it
will touch the right line TR. Q.E.F.

*
About a given focus to describe any trajectory given in specie
which shall pass through given points, and touch right lines given by position.
*

Case 1. About the focus S it is required to
describe a trajectory ABC, passing through two points B, C. Because
the trajectory is given in specie, the ratio of the principal axis to
the distance of the foci will be given. In that ratio take KB to BS,
and LC to CS. About the centres B, C, with the intervals BK, CL,
describe two circles; and on the right line KL, that touches the same
in K and L, let fall the perpendicular SG; which cut in A and *a*,
so that GA may be to AS, and G*a* to *a*S, as KB to BS;
and with the axis A*a*, and vertices A, *a*, describe a
trajectory: I say the thing is done. For let H be the other focus of
the described figure, and seeing GA is to AS as G*a* to *a*S,
then by division we shall have G*a* − GA, or A*a* to *a*S
− AS, or SH in the same ratio, and therefore in the ratio which the
principal axis of the figure to be described has to the distance of
its foci; and therefore the described figure is of the same species
with the figure which was to be described. And since KB to BS, and LC
to CS, are in the same ratio, this figure will pass through the points
B, C, as is manifest from the conic sections.

Case 2. About the focus S it is required to
describe a trajectory which shall somewhere touch two right lines TR,
*tr*. From the focus on those tangents let fall the
perpendiculars ST, S*t*, which produce to V, *v*, so
that TV, *tv* may be equal to TS, *t*S. Bisect V*v*
in O, and erect the indefinite perpendicular OH, and cut the right
line VS infinitely produced in K and *k*, so that VK be to KS,
and V*k* to *k*S, as the principal axis of the
trajectory to be described is to the distance of its foci. On the
diameter K*k* describe a circle cutting OH in H; and with the
foci S, H, and principal axis equal to VH, describe a trajectory: I
say, the thing is done. For bisecting K*k* in X, and joining
HX, HS, HV, H*v*, because VK is to KS as V*k* to *k*S;
and by composition, as VK + V*k* to KS + *k*S; and by
division, as V*k* − VK to *k*S − KS, that is, as 2VX to
2KX, and 2KX to 2SX, and therefore as VX to HX and HX to SX, the
triangles VXH, HXS will be similar; therefore VH will be to SH as VX
to XH; and therefore as VK to KS. Wherefore VH, the principal axis of
the described trajectory, has the same ratio to SH, the distance of
the foci, as the principal axis of the
trajectory which was to be described has to the distance of its foci;
and is therefore of the same species. And seeing VH, *v*H are
equal to the principal axis, and VS, *v*S are perpendicularly
bisected by the right lines TR, *tr*, it is evident (by Lem.
XV) that those right lines touch the described trajectory.
Q.E.F.

Case. 3. About the focus S it is required to
describe a trajectory, which shall touch a right line TR in a given
Point R. On the right line TR let fall the perpendicular ST, which
produce to V, so that TV may be equal to ST; join VR, and cut the
right line VS indefinitely produced in K and *k*, so that VK
may be to SK, and V*k* to S*k*, as the principal axis of
the ellipsis to be described to the distance of its foci; and on the
diameter K*k* describing a circle, cut the right line VR
produced in H; then with the foci S, H, and principal axis equal to
VH, describe a trajectory: I say, the thing is done. For VH is to SH
as VK to SK, and therefore as the principal axis of the trajectory
which was to be described to the distance of its foci (as appears from
what we have demonstrated in Case 2); and therefore the described
trajectory is of the same species with that which was to be described;
but that the right line TR, by which the angle VRS is bisected,
touches the trajectory in the point R, is certain from the properties
of the conic sections. Q.E.F.

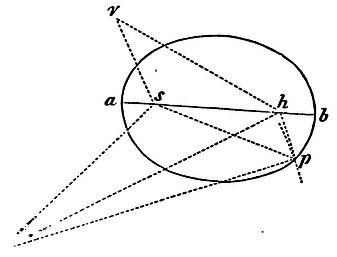

Case 4. About the focus S it is required to
describe a trajectory APB that shall touch a right line TR, and pass
through any given point P without the tangent, and shall be similar to
the figure *apb*, described with the principal axis *ab*,
and foci *s, h.* On the tangent TR let fall the perpendicular
ST, which produce to V, so that TV may be equal to ST; and making the
angles *hsq, shq*, equal to the angles VSP, SVP, about *q*
as a centre, and with an interval which shall be to *ab* as SP
to VS, describe a circle cutting the figure *apb* in *p*:
join *sp*, and draw SH such that it
may be to *sh* as SP is to *sp*, and may make the
angle PSH equal to the angle *psh*, and the angle VSH equal to
the angle *psq*. Then with the foci S, H, and principal axis
AB, equal to the distance VH, describe a conic section: I say, the
thing is done; for if *sv* is drawn so that it shall be to
*sp* as *sh* is to *sq*,
and shall make the angle *vsp* equal to the angle *hsq*,
and the angle *vsh* equal to the angle *psq*, the
triangles *svh, spq*, will be similar, and therefore *vh*
will be to *pq* as *sh* is to *sq*; that is
(because of the similar triangles VSP, *hsq*), as VS is to SP,
or as *ab* to *pq*. Wherefore *vh* and *ab*
are equal. But, because of the similar triangles VSH, *vsh*,
VH is to SH as *vh* to *sh*; that is, the axis of the
conic section now described is to the distance of its foci as the axis
*ab* to the distance of the foci *sh*; and therefore
the figure now described is similar to the figure *aph*. But,
because the triangle PSH is similar to the triangle *psh*,
this figure passes through the point P; and because VH is equal to its
axis, and VS is perpendicularly bisected by the right line TR, the
said figure touches the right line TR. Q.E.F

*
From three given points to draw to a fourth point that is not
given three right lines whose differences shall be either given, or none at all.
*

Case 1. Let the given points be A, B, C, and Z the fourth point which we are to find; because of the given difference of the lines AZ, BZ, the locus of the point Z will be an hyperbola whose foci are A and B, and whose principal axis is the given difference. Let that axis be MN. Taking PM to MA as MN is to AB, erect PR perpendicular to AB, and let fall ZR perpendicular to PR; then from the nature of the hyperbola, ZR will be to AZ as MN is to AB. And by the like argument, the locus of the point Z will be another hyperbola, whose foci are A, C, and whose principal axis is the difference between AZ and CZ; and QS a perpendicular on AC may be drawn, to which (QS) if from any point Z of this hyperbola a perpendicular ZS is let fall (this ZS), shall be to AZ as the difference between AZ and CZ is to AC. Wherefore the ratios of ZR and ZS to AZ are given, and consequently the ratio of ZR to ZS one to the other; and therefore if the right lines RP, SQ, meet in T, and TZ and TA are drawn, the figure TRZS will be given in specie, and the right line TZ, in which the point Z is somewhere placed, will be given in position. There will be given also the right line TA, and the angle ATZ; and because the ratios of AZ and TZ to ZS are given, their ratio to each other is given also; and thence will be given likewise the triangle ATZ, whose vertex is the point Z. Q.E.I.

Case 2. If two of the three lines, for example AZ and BZ, are equal, draw the right line TZ so as to bisect the right line AB; then find the triangle ATZ as above. Q.E.I.

Case 3. If all the three are equal, the point Z will be placed in the centre of a circle that passes through the points A, B, C. Q.E.I.

This problematic Lemma is likewise solved in Apollonius's Book of Tactions restored by Vieta.

*
About a given focus to describe a trajectory that shall pass
through given points and touch right lines given by position.
*

Let the focus S, the point P, and the tangent TR be given, and suppose that the other focus H is to be found. On the tangent let fall the perpendicular ST, which produce to Y, so that TY may be equal to ST, and YH will be equal to the principal axis. Join SP, HP, and SP will be the difference between HP and the principal axis. After this manner, if more tangents TR are given, or more points P, we shall always determine as many lines YH, or PH, drawn from the said points Y or P, to the focus H, which either shall be equal to the axes, or differ from the axes by given lengths SP; and therefore which shall either be equal among themselves, or shall have given differences; from whence (by the preceding Lemma), that other focus H is given. But having the foci and the length of the axis (which is either YH, or, if the trajectory be an ellipsis, PH + SP; or PH − SP, if it be an hyperbola), the trajectory is given. Q.E.I.

When the trajectory is an hyperbola, I do not comprehend its conjugate hyperbola under the name of this trajectory. For a body going on with a continued motion can never pass out of one hyperbola into its conjugate hyperbola.

The case when three points are given is more readily solved thus. Let
B, C, D, be the given points. Join BC, CD, and produce them to E, F,
so as EB may be to EC as SB to SC; and FC to FD as SC to SD. On EF
drawn and produced let fall the perpendiculars SG, BH, and in GS
produced indefinitely take GA to AS, and G*a* to *a*S,
as HB is to BS; then A will be the vertex, and A*a* the
principal axis of the trajectory; which, according as GA is greater
than, equal to, or less than AS. will be
either an ellipsis, a parabola, or an hyperbola; the point *a*
in the first case falling on the same side of the line GF as the point
A; in the second, going off to an infinite distance; in the third,
falling on the other side of the line GF. For if on GF the
perpendiculars CI, DK are let fall, IC will be to HB as EC to EB; that
is, as SC to SB; and by permutation, IC to SC as HB to SB, or as GA to
SA. And, by the like argument, we may prove that KD is to SD in the
same ratio. Wherefore the points B, C, D lie in a conic section
described about the focus S, in such manner that all the right lines
drawn from the focus S to the several points of the section, and the
perpendiculars let fall from the same points on the right line GF, are
in that given ratio.

That excellent geometer M. De la Hire has solved this Problem much after the same way, in his Conics, Prop. XXV., Lib. VIII.
